RAILWAY SEATS

T1101/H7-EA160

  • Technical Specification

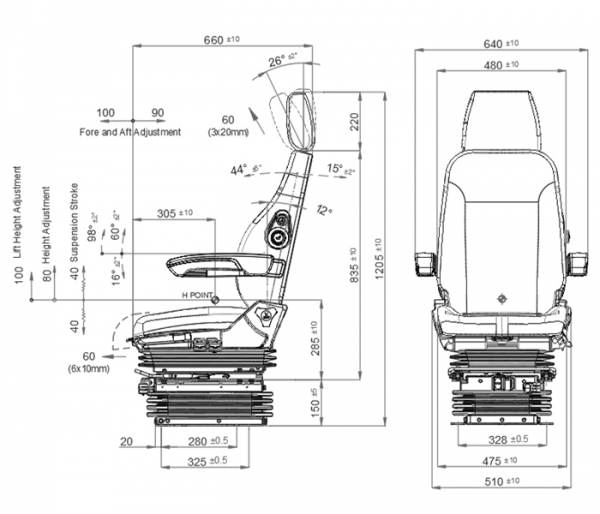

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 80mm
Height adjustment 80mm + 100mm
Turn Table
Adjustable shock absorber
Slide travel 190mm
Lumbar adjustment
Adjustable armrests
Adjustable headrest
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment
Vinyl trim N/A
N/A
Cloth trim
Genuine leather trim N/A
N/A
3-point seat belt - integrated
2-point seat belt
Document box-pouch
Front Controls N/A
N/A
LH Controls
RH Controls
Heater
Operator presence switch
Slides between seat top and suspension N/A
Standard connection widths 280mm
Optional connection widths 216 - 230 - 260 - 320 - 328mm
Testing EN 15085-2 CL2
EN 45545-2
2002/44/CE

: Option : Standard N/A : Not Available
