MATERIAL HANDLING SEATS

FK92

  • Technical Specification

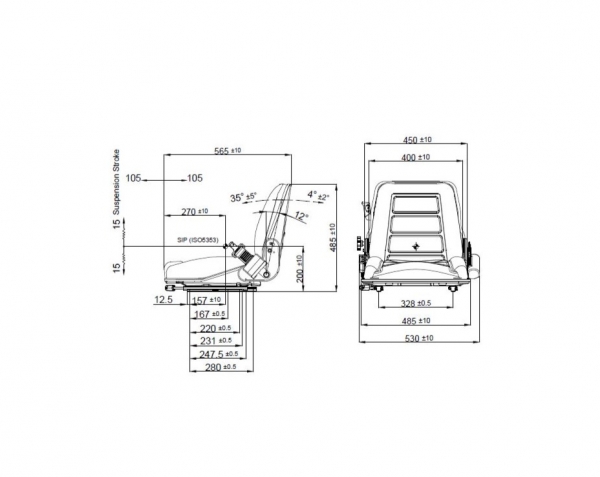

  • DIMENSIONS

Mechanical suspension (semi-suspension)
Weight adjustment Manual up to 130kgs.
Suspension stroke 30mm
Height adjustment N/A
Turn Table
Slide travel 210mm
Lumbar adjustment N/A
Hip restraints
Foldable armrests
Headrest N/A
Backrest adjustment
Vinyl trim (Vacuum type)
Cloth trim (Vacuum type)
2-point seat belt
Document box
Heater
Operator presence switch
Standard connection widths 328mm
Optional connection widths 180mm,207mm,260mm,268mm
Testing ISO6683
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
