MATERIAL HANDLING SEATS

F150/MN50

  • Technical Specification

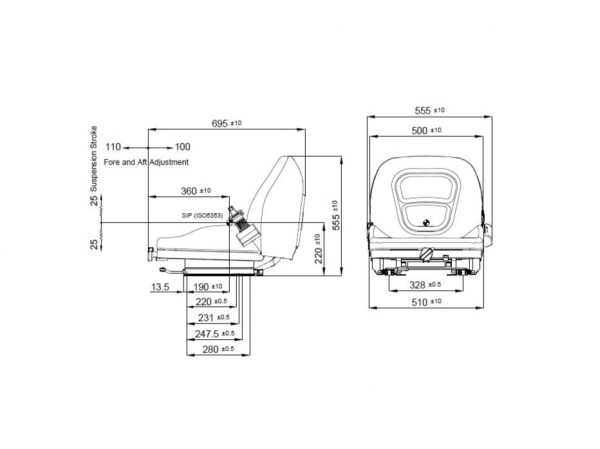

  • DIMENSIONS

Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 50mm
Height adjustment N/A
Turn Table
Slide travel 210mm
Lumbar adjustment N/A
Hip restraints
Adjustable / Foldable armrests
Headrest N/A
Backrest adjustment N/A
Vinyl trim (Vacuum type)
Cloth trim (Vacuum type)
2-point seat belt
Document box
Heater N/A
Operator presence switch
Standard connection widths 328mm
Optional connection widths 320mm
Testing EN13490 IT1
ISO 24135-1
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
