MARINE SEATS

MP1201/M80H3

  • Technical Specification

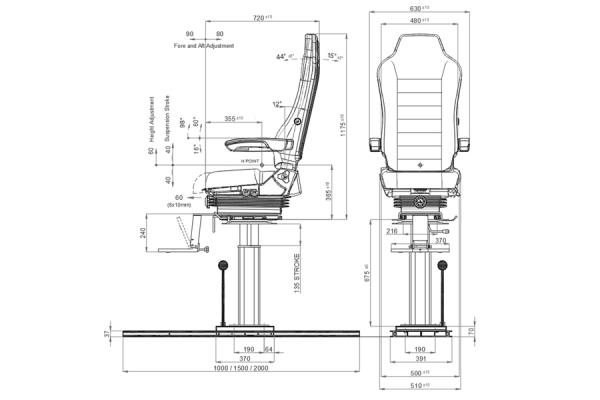

  • DIMENSIONS

Air suspension
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 80mm
Height adjustment - Seat 60mm
Optional suspension stroke 60mm - 100mm
Height adjustable pedestal with turn table
Adjustable shock absorber N/A
Slide travel 170mm
Lumbar adjustment
Adjustable armrests
Adjustable headrest N/A
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment
Vinyl trim
Cloth trim
Genuine leather trim
3-point seat belt N/A
2-point seat belt N/A
Document pouch
LH Controls
RH Controls
Footrest KIT
Adjustable mounting rail
Standard connection of seat 216mm
Testing Materials flammability conforms
to IMO satndards

: Option : Standard N/A : Not Available
