DRIVER SEATS

P1098/A100H

  • Technical Specification

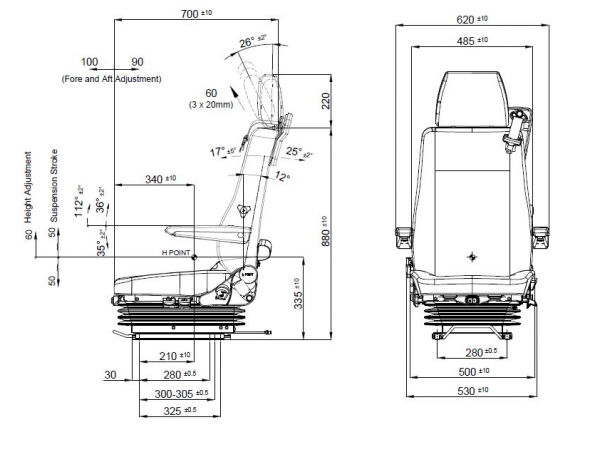

  • DIMENSIONS

Air suspension
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Automatic up to 150kgs.
Suspension stroke 100mm
Optional suspension stroke 60mm - 80 mm
Height adjustment 60mm
60mm
Turn Table
Adjustable shock absorber N/A
Slide travel 190mm
190mm
Lumbar adjustment
Adjustable armrests
Adjustable headrest
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment N/A
N/A
Vinyl trim
Cloth trim
Genuine leather trim
3-point seat belt
2-point seat belt
Document box-pouch
Front Controls
LH Controls
RH Controls
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 280 mm
Optional connection widths 216 - 230 - 260 - 320 - 328mm
Testing ECE R14 - M3 / N3
ECE R25.04
ECE R16.08
ECE R118.03
ECE R10

: Option : Standard N/A : Not Available
