• Technical Specification

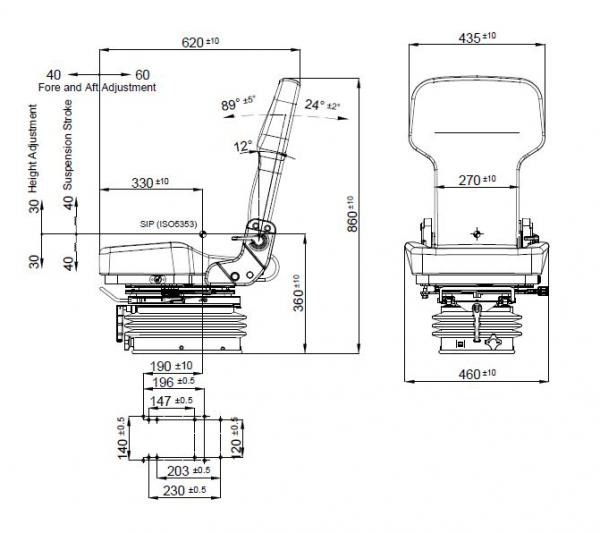

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 80mm
Height adjustment 60mm
Turn Table
Slide travel 100 mm
Lumbar adjustment N/A
Adjustable / Foldable armrests N/A
Adjustable headrest
Backrest adjustment
Vinyl trim (Cut&Sew)
Cloth trim (Cut&Sew)
Genuine leather trim
3-point seat belt N/A
2-point seat belt
Document box-pouch N/A
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 120 mm and 140 mm
Testing ISO 6683
ISO 7096 EM2,EM3,EM4,EM5,EM6,EM8,EM9
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
