CONSTRUCTION SEATS

P71/KM80X

  • Technical Specification

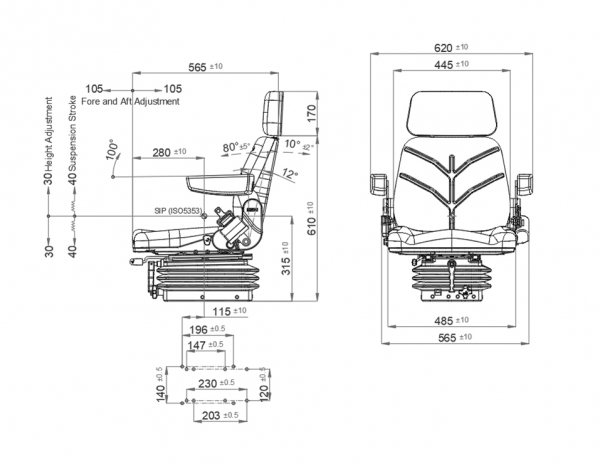

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 80mm
Height adjustment 60mm
Turn Table
Slide travel 210 mm
Lumbar adjustment
Adjustable / Foldable armrests
Headrest
Backrest adjustment
Vinyl trim (Vacuum type)
Cloth trim (Vacuum type)
3-point seat belt N/A
2-point seat belt
Document box-pouch
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 120 mm and 140 mm
Testing EU 1322/2014 Annex XIV
Class I, II
ISO 7096-EM2,EM3,EM4,EM5,EM6,EM8,EM9
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
