CONSTRUCTION SEATS

P1098WK/CEA100G2

  • Technical Specification

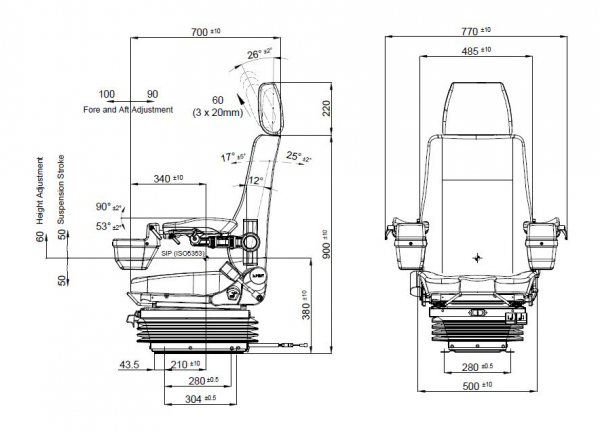

  • DIMENSIONS

Air suspension
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Automatic up to 150kgs.
Suspension stroke 100 mm
Optional suspension stroke 60 mm - 80 mm
Height and tilt adjustment 60mm
Turn Table
Slide travel 190mm
Lumbar adjustment
Adjustable / Foldable armrests
Joystick holders including adjustable armrests
Adjustable headrest
Backrest adjustment
Vinyl trim (Cut&Sew)
Cloth trim (Cut&Sew)
Genuine leather trim
3-point seat belt
2-point seat belt
Document box-pouch
Front Controls (except backrest recline handle)
LH Controls N/A
RH Controls N/A
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 280mm
Optional connection widths 260mm
Testing
ISO 6683
ISO 7096-EM1,EM3,EM5,EM8,EM9
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
