CONSTRUCTION SEATS

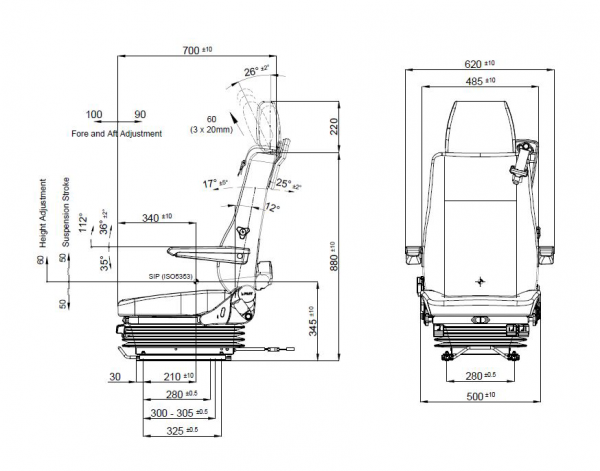

P1098/EA100F4
Air suspension |
▲
|
Air suspension with 12V or 24V built-in compressor |
●
|
Mechanical suspension |
▲
|
Weight adjustment |
Automatic up to 150kgs. |
Suspension stroke |
100 mm |
Optional suspension stroke |
60 mm - 80 mm |
Height and tilt adjustment |
60mm |
Turn Table |
▲
|
Slide travel |
190mm |
Lumbar adjustment |
▲
|
Adjustable / Foldable armrests |
▲ |
Joystick holders including adjustable armrests |
N/A |
Adjustable headrest |
●
|
Backrest adjustment |
● |
Vinyl trim (Cut&Sew) |
● |
Cloth trim (Cut&Sew) |
▲ |
Genuine leather trim |
▲ |
3-point seat belt |
▲ |
2-point seat belt |
▲ |
Document box-pouch |
▲ |
Front Controls |
● |
LH Controls |
N/A |
RH Controls |
N/A |
Heater |
▲
|
Operator presence switch |
▲ |
Slides between seat top and suspension (Becomes EA100G2) |
▲ |
Standard connection widths |
280mm |
Optional connection widths |
216 - 230 - 260 - 320 - 328 mm |
Testing |
ISO 6683
ISO 7096-EM1,EM3,EM5,EM8,EM9
ECE R16.08
ISO 3795 |
▲ : Option
● : Standard
N/A : Not Available
