AGRICULTURAL SEATS

P120/EA140

  • Technical Specification

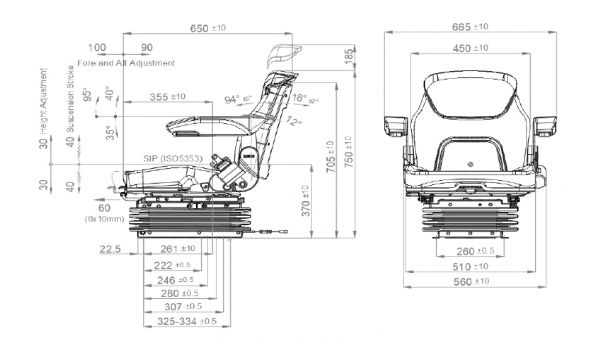

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Automatic up to 150kgs.
Suspension stroke 80mm
Height adjustment 60mm
Turn Table
Adjustable shock absorber
Slide travel 190mm
Lumbar adjustment
Horizontal isolator
Adjustable / Foldable armrests
Adjustable headrest
Backrest adjustment
Seat cushion depth adjustment
Vinyl trim (Vacuum type)
Cloth trim (Vacuum type)
3-point seat belt N/A
2-point seat belt
Document box-pouch
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 260mm
Optional connection widths 280mm (Order ----/CEA140)
Testing EU 1322/2014 Annex XIV
Class I, II , III
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
